High-Pressure Piping Systems for Oilfield Operations
Well Services Solution (WSS) manufactures and supplies high-pressure piping systems for critical oilfield operations, designed to withstand extreme pressures, temperatures, and corrosive environments.
Key Features
- Pressure ratings up to 15,000 psi
- Temperature tolerance exceeding 350°F (177°C)
- Diverse connection types including hammer unions and flanged connections
- Material options: H2S-resistant carbon steel, stainless steel, and internally coated pipelines
Manufacturing Capabilities
- Custom fabrication to meet specific project requirements
- Compliance with industry standards (ASME B31.3, API specifications, NACE MR0175)
- Rigorous quality control and testing procedures
- In-house coating capabilities for enhanced corrosion resistance
Connection Types

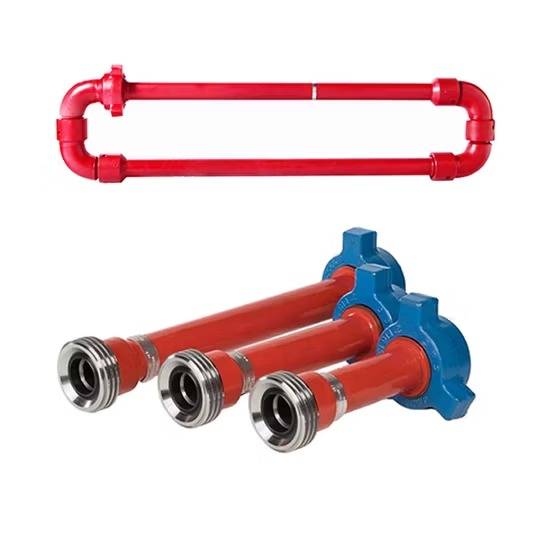

- Hammer unions: Fig. 1502, 602, 206

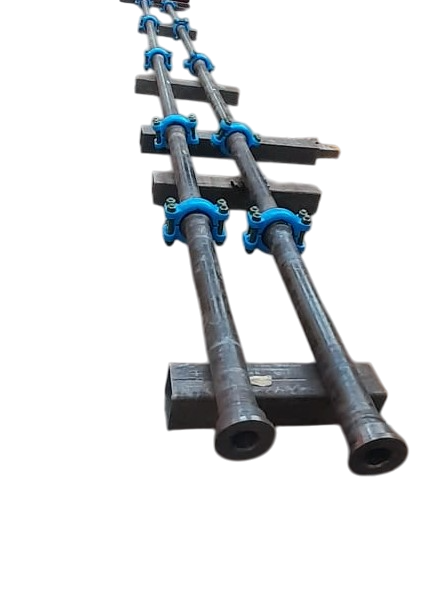

- Hub connections: D27, C25, GR52
- Flanged connections: API 6A flanges for high-pressure applications
- Specialized connections for ultra-high pressure scenarios
Applications
1. Flow Back Operations
Handling return fluids post-fracturing or stimulation with corrosion-resistant systems.
2. Managed Pressure Drilling (MPD)
Closed-loop systems with automated pressure control, including high-pressure rotating control devices.
3. Underbalanced Drilling (UBD)
Gas injection lines for nitrogen or air, with multiphase flow handling capabilities.
4. Frac Operations
Ultra-high pressure systems for proppant-laden fluids with large diameter pipes for high flow rates.
5. HPHT Well Test Operations
Specialized systems for extreme pressure and temperature conditions with advanced sealing technologies.
6. Production Flowlines
Long-term installations for produced fluids using corrosion-resistant materials.
