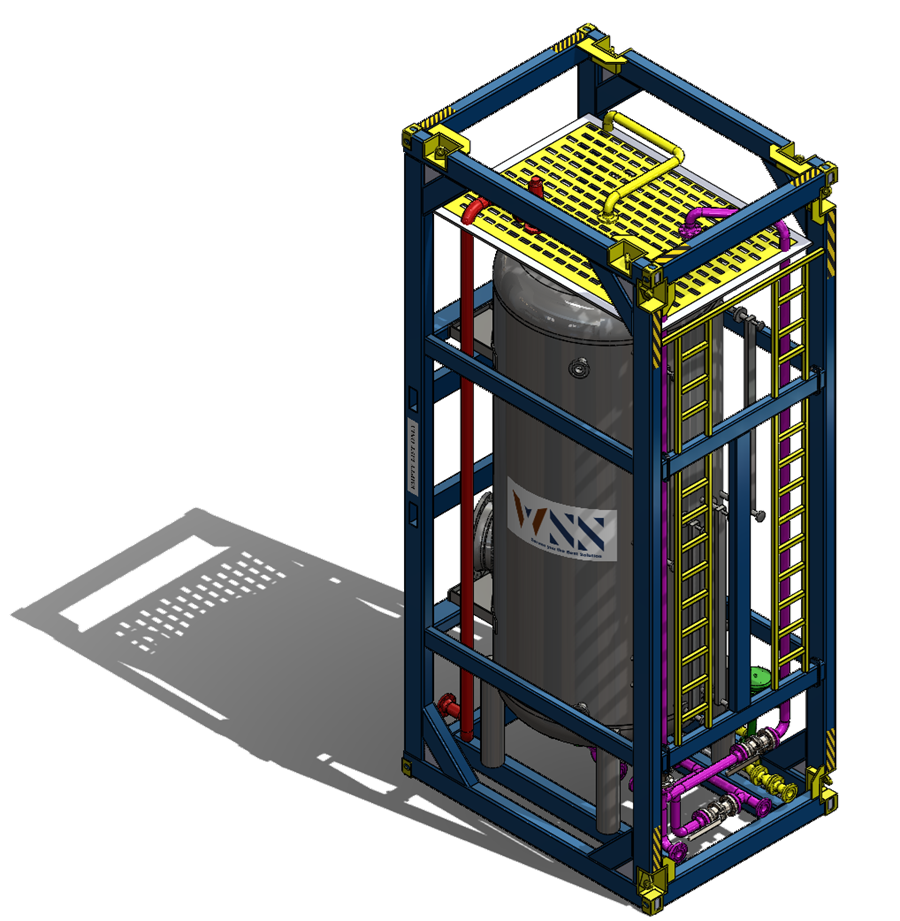

Surge Tanks and Knockout Drums
Knockout Drums: Essential for processes where gas streams carry entrained liquids, our knockout drums effectively remove liquids, protecting downstream equipment and ensuring safe operations. Available in vertical and horizontal configurations, they are customizable to specific process requirements.
Surge Tanks: Used for pressure stabilization and fluid storage, our surge tanks are designed as per API 12J standards. These vessels ensure consistent flow rates, minimizing fluctuations during operations.
| Typical Technical Specification | |
|---|---|
| Maximum Allowable W.P | 150 psig |
| Test pressure | 225 psig |
| Design Temperature | -50 to 250°F |
| Service | Sour Gas (H2S) |
| Capacity | 2 x 50 bbl compartments |
| Safety Device | |
|---|---|
| Pressure Relief valve | 2 Nos |
| High Liquid level alarm | Pneumatic level control, x 3” 150# RF flange |
| Low Liquid level alarm | Pneumatic level control, x 3” 150# RF flange |
| Skid | |
|---|---|
| Skid | DNV E 271 Approved Skid |
| Load Test | 2.5 x 8 MGW |
| Slings | Yes for Both lifting (DNV approved) |
| Dimension & Weight | |
|---|---|
| MGW | 12 ton |
| L x W x H | 7.2 x 2.8 x 3.2 (Mtr) |
| Slings | Yes for Both lifting (DNV approved) |
